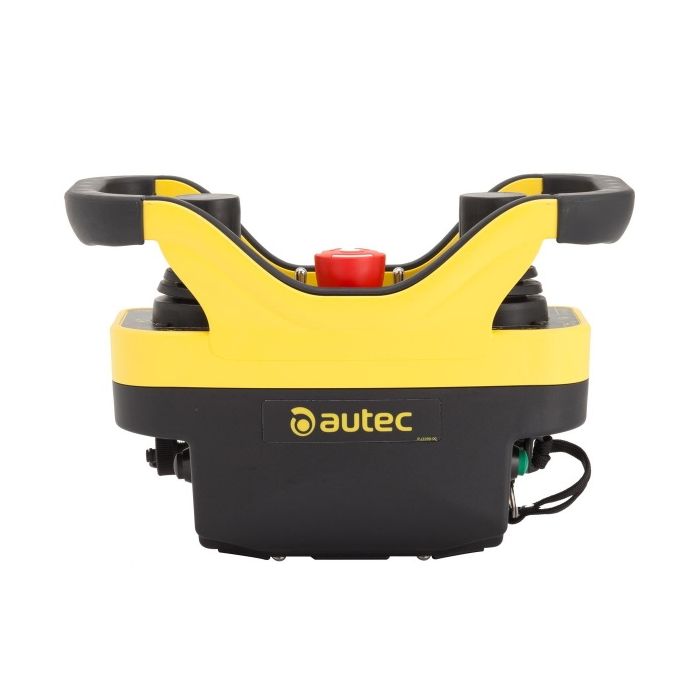

DJS transmitting unit with two joysticks and up to seven additional actuators + Start and Stop. Nylon reinforced casing resistant to external influencess, IP65 protection degree, comfortable ergonomic design for easy control and handling.
Accessories
- Shoulder harness
- Waist Belt
Options DJS
- 1.54'' graphic display
- LEDs on panel
- Cable Control
- IR Sensor
- External buzzer
- 3-axis joystick
- ID internal tx memory
- Marine Environment Protection
Actuator types for DJS
- Potentiometer
- Rotary switch
- Toggle switch
- Pull-to-operate toggle switch
- Side button
| Power supply | 7.4 VDC (Li-Ion Battery) 7.2 VDC (NiMH Battery) |
|---|---|
|
Frequency band
|
863-870 MHz (128 channels) / 915-928 MHz (260 channels)
|
|
Hamming distance
|
≥ 15
|
|
Typical working range
|
100 m |
| Average usage time with fully charged battery (continuous use at 20°C) without display | 18.5 h (Li-Ion Battery) 11 h (NiMH Battery) |
| Average usage time with fully charged battery (continuous use at 20°C) with display | 16 h (Li-Ion Battery) 9.5 h (NiMH Battery) |
|
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
|
up to PL e, cat. 4 / SIL 3
|
| Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) | up to PL d, cat. 3 / SIL 2 |
|
Protection degree
|
IP65 (NEMA 4)
|
| Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) storage: (-40 °C) ÷ (+85 °C) |
|
Dimensions
|
258 x 170 x 126 mm |
| Weight | 1,3 kg |
