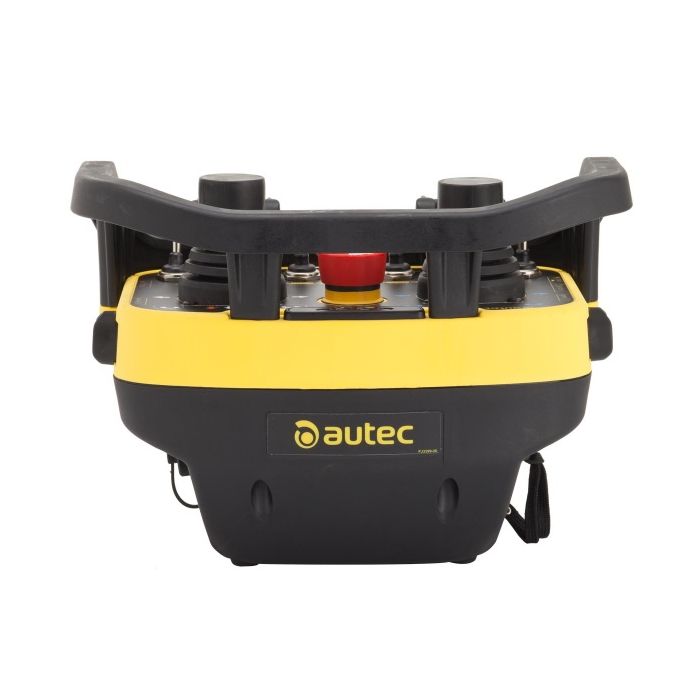

The DJR customisable transmitter with up to six joysticks and several additional actuators. Nylon reinforced casing, resistant to external influences, IP65 protection degree, comfortable design for easy control and handling.
Accessories
- Shoulder harness
- Waist Belt
Options
- 2.7’’ LCD transflective display
- 4.3’’ color display
- 32-LED matrix
- LEDs on panel
- Cable Control
- Tilt or impact sensor
- IR Sensor
- External buzzer
- 3-axis Joystick
- ID internal tx memory
- Marine Environment Protection
Actuators
- Potentiometer
- Rotary switch
- Toggle switch
- Pull-to-operate toggle switch
- Side button
| Power supply | 7.4 VDC (Li-Ion Battery) 7.2 VDC (NiMH Battery) |
|---|---|
|
Frequency band
|
863-870 MHz (128 channels) / 915-928 MHz (260 channels)
|
|
Hamming distance
|
≥ 15
|
|
Typical working range
|
300 m |
| Average usage time with fully charged battery (continuous use at 20°C) without display | 18.5 h (Li-Ion Battery) 11 h (NiMH Battery) |
| Average usage time with fully charged battery (continuous use at 20°C) with display | with 2.7” Display: 15h (LPM02 Battery), 9h (MBM06MH Battery) with 4.3” Display: 8h (LPM04 Battery) |
|
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
|
up to PL e, cat. 4 / SIL 3
|
| Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) | up to PL d, cat. 3 / SIL 2 |
|
Protection degree
|
IP65 (NEMA 4)
|
| Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) storage: (-40 °C) ÷ (+85 °C) |
|
Dimensions
|
260 x 200 x 190 mm |
| Weight | 2 kg |
