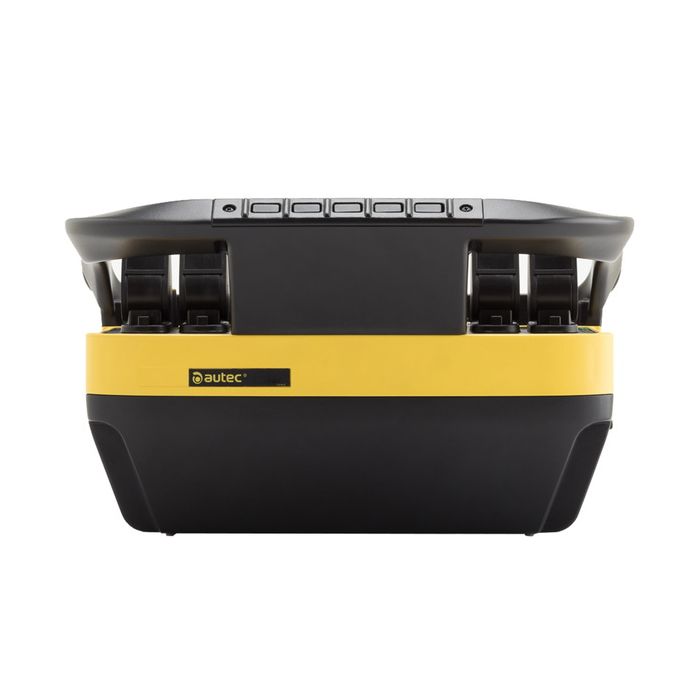

The CURVE DJQ is a joystick transmitting unit, equipped with eight linear joysticks and up to three multi-axis joysticks. The DJQ ideal for driving medium to large hydraulic cranes, but can also be used on concrete pump and for many other applications.
A data feedback function gives user important information on machine status on a customizable 2.8’’ color TFT LCD graphic display or via 32 LEDs or on a 4.3 ''color display version (programmable CODESYS /Linux). CURVE is available with FSA technology with bi-directional FHSS radio (870/915 MHz) frequency band. It is available also for the “P” line of DYNAMIC, which allows the pairing with a new CAN receiver (CRP), through a simple procedure by cable.
Accessories CURVE DJQ
- Shoulder harness or waist belt
- Extractable NiMH or Li-Ion battery and charger
Options
- Cable Control
- IR Sensor
- External Buzzer
- 2.8’’ TFT LCD graphic display (240x320 pixel, 65536 colors)
- 4.3’’ TFT LCD graphic display (480x272 pixel, 65536 colors)
- 32 LEDs
- LEDs on panel
- Removable Mechanical key (if "Key ID 0-1" is not present)
- Marine environment protection
Actuators
- Potentiometer
- Rotary switch
- Toggle switch
- Pull-to-operate toggle switch
- Side button
| Power supply | 7.4 VDC (Li-Ion Battery) 7.2 VDC (NiMH Battery) |
|---|---|
|
Frequency band
|
870/915 MHz FHSS
|
|
Hamming distance
|
≥ 15
|
|
Typical working range
|
100 m |
| Average usage time with fully charged battery (continuous use at 20°C) without display | 18.5 h (Li-Ion Battery) 11 h (NiMH Battery) |
| Average usage time with fully charged battery (continuous use at 20°C) with display | with 2.8” Display: 9 h (Li-Ion Battery) |
|
Safety performance of the STOP function (EN ISO 13849-1 / EN IEC 62061)
|
up to PL e, SIL 3
|
| Safety category for the protection against unintended movements from standstill UMFS (EN ISO 13849-1 / EN IEC 62061) | up to PL d, cat. 3 / SIL 2 |
|
Protection degree
|
IP65 (NEMA 4)
|
| Operating and storage temperature | operating: (-25 °C) ÷ (+55 °C) storage: (-40 °C) ÷ (+85 °C) |
|
Dimensions
|
309 x 170 x 182 mm |
| Weight | 2,4 kg |
